| Name |
Raised edge conveyor belt |
| Description |
1, Products (general inclination corrugated wall large conveyor belt)

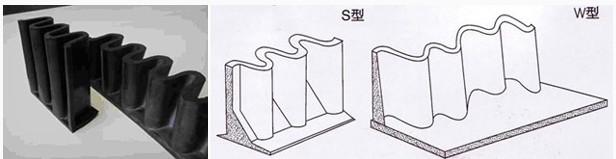

Corrugated wall with large tilt angle from base-band, ribs, diaphragm 3 parts. Wall to prevent the material from sliding measured撒落role. For the convenience of bypassing the drum, the stall designed wavy edge; diaphragm is the role of supporting materials, in order to achieve large angle transmission, the use of T-TC type. File edges and cross-partition is the second sulfide methods and base-band connectivity, a high joint strength

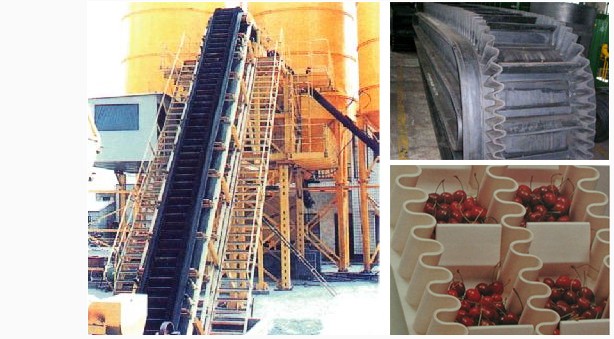

Features (general inclination corrugated wall large conveyor belt):
1, increases the transmission angle (30 ~ 90 degrees);
2, covers an area of small, low investment;
3, throughput, and enhance the high degree of higher;
4, from level to tilt (or vertical) will make a smooth transition;
5, suitable for easy transportation of powder, granular, small block, paste and liquid-like materials;
6, low energy consumption, simple structure, high strength tape, long service life.
2, species
According to the performance of different plastic cover is divided into ordinary-type, heat-resistant type, flame retardant type, cold type, acid type, such as oil-based.
3, Specifications
(1) with the core material: CC-56, NN100, NN150, NN200, NN300, NN400
(2) bandwidth: 100mm-2200mm
(3) cloth layer :2-10-storey
(4) plastic cover: Face :1.5-8mm non-face: 0mm-4.5mm |
|
