SPANBELT BELTING

Patterned conveyor belt

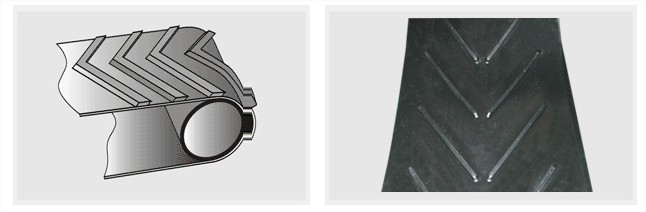

No.1、Shape and characteristice：
on the surface of the belt ,there is chevron pattern higher than the belt body, The pattern includes three types
high medium and low.

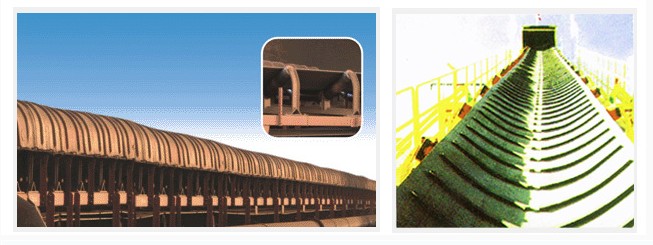

No.2、Usage
It can conveyor powde red, granutated and small lump materials at het inclination of no more thean 40 ,
it can also convey packaged materials.

类型 A

Size (mm)
A	B	C	D	E	F	P
400	300	50	84	220	30	146
450	300	75	84	220	30	146
500	300	100	84	220	30	146
550	300	125	84	220	30	146
600	450	75	125	350	30	219
650	450	100	125	350	30	219
700	600	50	188	480	30	328
800	600	100	188	480	30	328

类型 B

Size (mm)
A	B	C	D	E	F	G
12	15	20	450	385	32	250
			500	385	58	250
			600	385	108	250
			650	385	133	250
			750	385	183	250
12	15	20	600	450	75	300
			650	450	100	300
			750	450	150	300
			800	450	175	300
			900	450	225	300
12	15	20	900	750	75	250
			1000	750	125	250
			1050	750	150	250
			1200	750	225	250

类型 C

尺寸 (mm)
A	B	C
10	3	500
10	3	600
10	3	700
10	3	800
12	6	500
12	6	600
12	6	700
12	6	800
12	6	900
12	6	1000

类型 D
