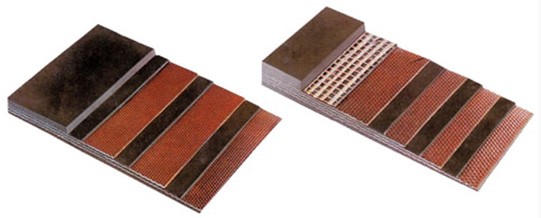

Polyester conveyor belts

Name: Polyester conveyor belts
Fabric specs : EP-80~EP+630
Width（mm）: 300~2600

Polyester conveyor belts, also called EP conveyor belts. whose tension resistant body is canvas woven by
polyester in warp and polyamine in weft, The belts have the characteristics of low elongation in warp and
good troughability in weft. good water resistance , good wet strength, no mould it is suitable for medium,
long distance and heavy-load transportation of materials . Because of the high initial modulus of polyester
the belts can choose a relative low safety factor.

Introduction：

Specification and technical data of multi-ply polyester conveyor belt

Fabric type	Fabric structure		Ply thickness (mm/p)	Ply Thickness (mm/p)	(N/mm) Strength series					(mm) Cover thickness		Width mm	Length mm
Fabric type	Warp	Weft	Ply thickness (mm/p)	Ply Thickness (mm/p)	2ply	3ply	4ply	5ply	6ply	Upper	Upper	Width mm	Length mm
Polyester (EP)	Polyester (EP)	Polyamine (P)	EP-80	0.6	160	240	320	400	480	1.5～12	0～4.5	400～2500	≤300
			EP-100	0.75	200	300	400	500	600			400～2500
			EP-150	1	300	450	600	750	900			400～2500
			EP-200	1.1	400	600	800	1000	1200
			EP-250	1.25	500	750	1000	1250	1500
			EP-300	1.35	600	900	1200	1500	1800			800～2500
			EP-350	1.45		1050	1400	1750	2100			1000～2500
			EP-400	1.55			1600	2000	2400
			EP-500	1.7			2000	2500	3000

Conver properties of the belts

Type	Mpa ≥	Mpa ≥	mm2 ≤	Change Rate of tensile strengh and elong after aging
Type	Mpa ≥	Mpa ≥	mm2 ≤	%
H	24	450	120	-25～+25
D	18	400	100	-25～+25
L	15	350	200	-25～+25

Adhesion and elongation of the belt

Item	Between Plies N/mm	N/mm Between rubber and carcass		Elongation
		Covering thickness 0.8-1.5mm	Covering thickness >1.5mm	Longitudinal elongation at break % ≥	Longitudinal elongation at reference load % ≤
All the sample average ，N/mm,≥	4.5	3.2	3.5
All samples minimum peak ，N/mm,≥	3.9	2.4	2.9	10	4
Note: All samples shall not exceed the peak values
